2.4.11 Device Profiles

Certain DeckLink devices such as the DeckLink 8K Pro, the DeckLink Quad 2 and the DeckLink Duo 2 support multiple profiles to configure the capture and playback behavior of its sub-devices.

For the DeckLink Duo 2 and DeckLink Quad 2, a profile is shared between any 2 sub-devices that utilize the same connectors. For the DeckLink 8K Pro, a profile is shared between all 4 sub-devices. Any sub-devices that share a profile are considered to be part of the same profile group. To enumerate the sub-devices in a group, the IDeckLinkProfile::GetPeers() method should be used.

A change in profile is applied to all sub-devices in the group. The following is a list of items that are affected by a profile change:

• Profile ID attribute BMDDeckLinkProfileID.

• SDI link configuration attributes BMDDeckLinkSupportsDualLinkSDI and BMDDeckLinkSupportsQuadLinkSDI.

• Supported Display Modes. An application should recheck the outputs of IDeckLinkInput::DoesSupportVideoMode() and IDeckLinkOutput::DoesSupportVideoMode().

• Keying support attributes BMDDeckLinkSupportsInternalKeying and BMDDeckLinkSupportsExternalKeying.

• Sub-devices may change duplex mode or become inactive. An application can check the duplex mode with attribute BMDDeckLinkDuplex.

• Other attributes accessible by the IDeckLinkProfileAttributes object interface.

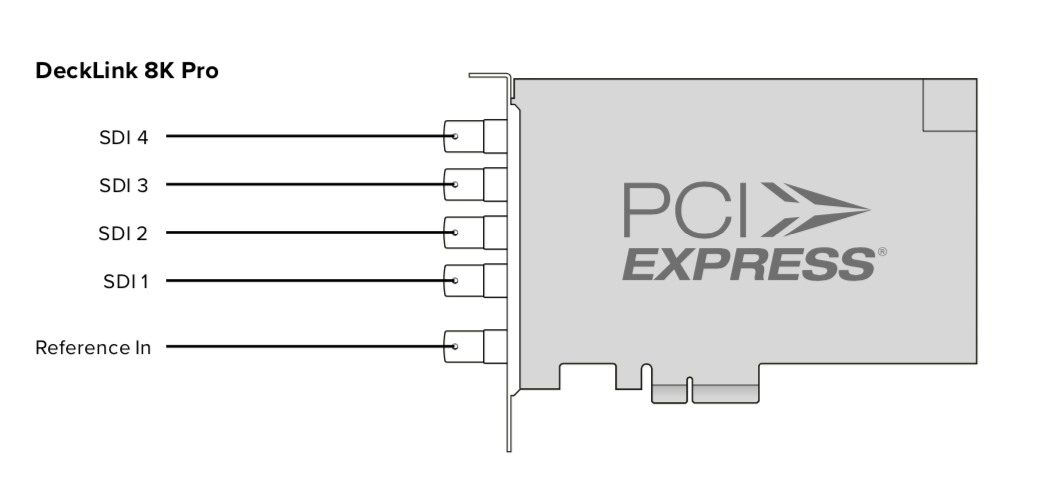

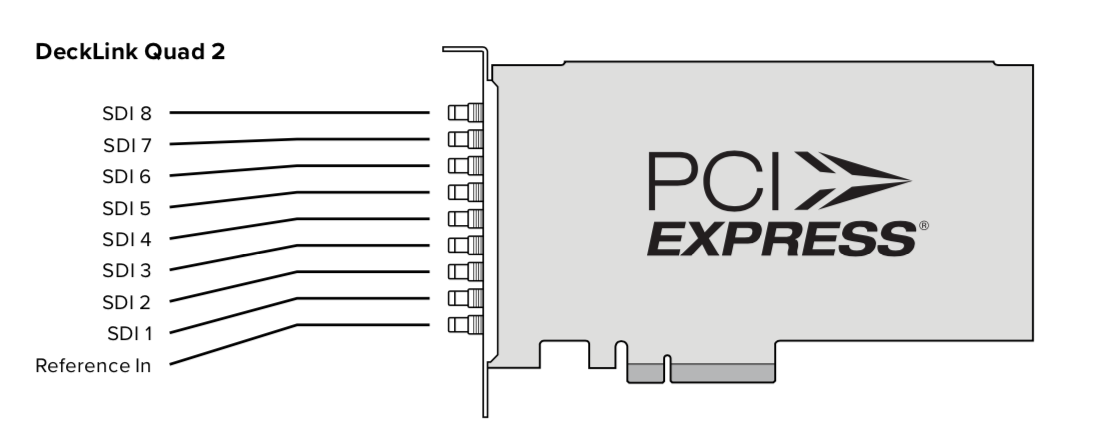

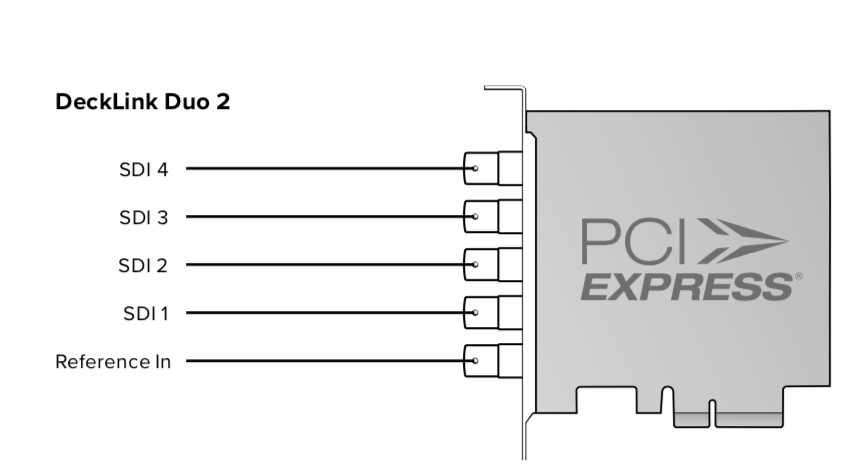

The tables and illustrations below demonstrate the grouping of sub-devices and how the relationship to physical connectors varies with different profiles.

DeckLink 8K Pro

Sub-device index	4 sub-devices profile (bmdProfileFourSubDevicesHalfDuplex)	2 sub-devices profile (bmdProfileTwoSubDevicesFullDuplex)	1 sub-device full-duplex profile (bmdProfileOneSubDeviceFullDuplex)	1 sub-device half-duplex profile (bmdProfileOneSubDeviceHalfDuplex)
0	SDI 1 (in/out)	SDI 1 (in/key) SDI 2 (out/fill)	SDI 1 (CH-B in) SDI 2 (CH-A in) SDI 3 (CH-B out/key) SDI 4 (CH-A out/fill)	SDI 1 (CH-D in/out) SDI 2 (CH-C in/out) SDI 3 (CH-B in/out/key) SDI 4 (CH-A in/out/fill)
1	SDI 3 (in/out)	SDI 3 (in/key) SDI 4 (out/fill)	Inactive	Inactive
2	SDI 2 (in/out)	Inactive	Inactive	Inactive
3	SDI 4 (in/out)	Inactive	Inactive	Inactive

DeckLink Quad 2

Sub-device index	2 sub-devices profile (bmdProfileTwoSubDevicesHalfDuplex)	1 sub-device profile (bmdProfileOneSubDeviceFullDuplex)
0	SDI 1	SDI 1 (in/key) & SDI 2 (out/fill)
1	SDI 3	SDI 3 (in/key) & SDI 4 (out/fill)
2	SDI 5	SDI 5 (in/key) & SDI 6 (out/fill)
3	SDI 7	SDI 7 (in/key) & SDI 8 (out/fill)
4	SDI 2	Inactive
5	SDI 4	Inactive
6	SDI 6	Inactive
7	SDI 8	Inactive

DeckLink Duo 2

Sub-device index	2 sub-devices profile (bmdProfileTwoSubDevicesHalfDuplex)	1 sub-device profile (bmdProfileOneSubDeviceFullDuplex)
0	SDI 1	SDI 1 (in/key) & SDI 2 (out/fill)
1	SDI 3	SDI 3 (in/key) & SDI 4 (out/fill)
2	SDI 2	Inactive
3	SDI 4	Inactive

2.4.11.1 Determine the current profile ID

An application can determine the current profile for an IDeckLink device by performing the following steps:

• Call IUnknown::QueryInterface() on the IDeckLink object with IID_DeckLinkProfileAttributes.

• Call IDeckLinkProfileAttributes::GetInt() with identifier BMDDeckLinkProfileID to obtain the ID of the current profile.

2.4.11.2 List the available profiles

An application can list the available profiles for an IDeckLink device by performing the following steps:

• Obtain an IDeckLinkProfileManager interface object by calling IUnknown::QueryInterface() on the IDeckLink object with IID_IDeckLinkProfileManager. If result is E_NOINTERFACE, then the DeckLink device has only one profile (the current profile).

• Obtain an IDeckLinkProfileIterator by calling IDeckLinkProfileManager::GetProfiles() and enumerate the supported profiles for the device by calling IDeckLinkProfileIterator::Next().

For each returned IDeckLinkProfile interface object:

• Call IUnknown::QueryInterface() on the IDeckLinkProfile object with IID_DeckLinkProfileAttributes.

• Call IDeckLinkProfileAttributes::GetInt() with identifier BMDDeckLInkProfileID to obtain the profile ID.

2.4.11.3 Select a new profile

An application can select a new profile for an IDeckLink device by performing the following steps:

• Obtain an IDeckLinkProfileManager interface object by calling IUnknown::QueryInterface() on the IDeckLink object with IID_IDeckLinkProfileManager.

• Obtain an IDeckLinkProfile interface object by calling IDeckLinkProfileManager::GetProfile() with the required cpp:enum:BMDDeckLinkProfileID.

• Activate the required profile with IDeckLinkProfile::SetActive().

2.4.11.4 Handle a profile change notification

A callback can be provided to an application when a profile is changed. If the application does not implement a profile callback, the running streams may be halted unprompted by the driver if the profile changes.

An application that supports profile changing notification should perform the following steps:

• Create a callback class that subclasses from IDeckLinkProfileCallback and implement all of its methods. The callback calls will be called asynchronously from an API private thread.

• Obtain an IDeckLinkProfileManager interface object by calling IUnknown::QueryInterface() on the IDeckLink object with IID_IDeckLinkProfileManager.

• Install the callback by calling IDeckLinkProfileManager::SetCallback() and referencing your IDeckLinkProfileCallback object.

During profile change:

• Receive call to IDeckLinkProfileCallback::ProfileChanging(), stop any active streams if required as determined by the streamsWillBeForcedToStop argument.

• Receive call to IDeckLinkProfileCallback::ProfileActivated(), when the new profile is active. The application should rescan any attributes and display modes for the new profile.

Note

Profile change callbacks will occur if another application has changed the active profile of the device.
